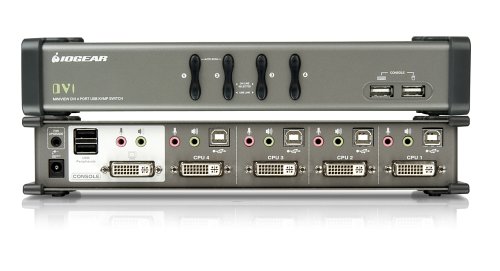

| IOGEAR 4 Port DVI KVMP Switch with Audio and Cables (GCS1764) |
|
 Larger image
|
List Price: $266.73
Our Price: $186.88
You Save: $ 79.85 (30%)
Availability: Usually ships in 24 hours
Manufacturer: IOGEAR
|
Average Customer Rating:
|
|
Binding: Electronics
Brand: Iogear
EAN: 0881317003041
Feature: Device Type - KVMP Switch
Is Autographed: 0
Is Memorabilia: 0
Label: IOGEAR
Manufacturer: IOGEAR
Model: GCS1764
Publisher: IOGEAR
Special Features: nv:Console Connections^1|Computer Connections^4|Keyboard Port Type^USB|Monitor Port Type^DVI|Mouse Port Type^USB|Audio Ports^Audio Out|Audio Ports^Microphone|Integrated KVM Cable^No|Power Supply Type^Bus Powered (No External Power Adapter Required)|LEDs^4 Port LEDs|Port Selection^Push Button|Port Selection^Hot-Keys|Auto-Scan Intervals^5 seconds|Switching Confirmation^Audio Beep
Studio: IOGEAR
Warranty: 3 years warranty
|
|
|
Features
|
Device Type - KVMP Switch
Form Factor - N/A
Dimensions WxDxH - 2.93" x 10.25" x 1.65"
Weight - 6.7 Lb
Package Contents: 1 x GCS1764 KVMP switch
4 x 6' custom cables
1 x Firmware upgrade cable
1 x Power Adapter
1 x User Manual
1 x Quick Start Guide
|
|
|
|
|
|
|
|
|
|
|
|
Editorial Reviews:
|
|
The IOGEAR DVI KVMP Switch GCS1764 charts a revolutionary new direction in KVM switch functionality by providing an interface for today's digital monitors while integrating a 4-port USB KVM switch with USB peripheral sharing capabilities. As a KVM switch, the unit allows the user to access four computers from a single USB keyboard, USB mouse, and monitor, and also share among the computers peripherals such as external hard drives, printers and scanners. The GCS1764's independent (asynchronous) switching feature allows the KVM focus to be on one computer while the USB peripheral focus is on another. The user can switch from one computer to another without interrupting print jobs, downloads or other functions being handled by connected peripherlas. This eliminates the need to purchase a separate USB hub as well as the need to purchase separate stand-alone peripheral sharers - such as printer servers, modem splitters, etc. It further improves on previous designs with DVI (Digital Video Interface) connectors, and the transfer of keyboard and mouse data to the computers via a fast, reliable USB connection. DVI supports both digital input (flat panel displays, data projectors, plasma displays, digital TVs and set-top boxes) and analog video input (traditional monitors and TVs). Fully compliant with the USB 1.1 specification - supports transfer rates of up to 12 Mbps DVI digital and analog monitor support - fully compliant with the DVI specifications Computer selection via front panel switches and hotkeys LED display for easy status monitoring Auto Scan Mode for monitoring all computers Complete keyboard emulation for error free booting Superior Video quality - 1600 x 1200; DDC2B Hot pluggable - add or remove computers for maintenance
|
|
|
| Spotlight customer reviews: |
|
Customer Rating:
Summary: Working Great in our Professional Application
Comment: This product, in conjunction with a pair of DVI EDID identification spoofers, is working GREAT in one of our UAV Ground Station applications.
Excellent High Quality Product - I am proud to be using it... now, if they can come up with a 19" Rack Mount Kit, I'll be completely set.
Customer Rating:
Summary: Works Great
Comment: This switch has been a lifesaver when wanting to share my 24" widescreen monitor with my PC desktop, work laptop and MacBook Pro. I rarely ever have more than one computer on at a time but I have not noticed any problems on the rare occasions when all three are on at the same time. I don't use the audio portion of this switch so I can't comment on that feature but for pure KVM I have no complaints. I was also very impressed that the switch came with all of the cables - a big plus!
Customer Rating:
Summary: Tiny, easy to install, and works like a champ.
Comment: Purchased this unit for the 1920x1200 resolution, the DVI and sound inputs, and the 4 ports. Unit exceeded my expectations.
This unit is tiny! Less than 11 inches wide and 4 inches deep. It's about the size of a desktop 3 hole punch or a household spray can. The KVM cables and power plug into the back and the console plugs into the front. The unit is sturdy though. Case is metal and not plastic -- unlike some lower price KVMs. You can stack stuff on top of it.
I connected it to a computer running Windows Vista and a computer running Red Hat Enterprise Linux. Everything worked flawlessly. All computers running at 1920x1200 @ 60hz. Switching from computer to computer takes about 2 seconds. Switching time might be less with smaller screens. Ports are hot-pluggable so you can move connections from one port to another without causing issues. The unit beeps when switching ports.
Unit has an autoscan feature that cycles through all active computers. Autoscan displays each port for 5 seconds then moves to the next port.
Oh, it comes with HOTKEYS! Instead of having to reach for the KVM switch, you tap the SCRL-LOCK key twice, press the number of the computer you want to switch to, then press ENTER. KVM switches and your hands haven't left the keyboard. (For us Linux people who type a LOT, that is a time-saver). There are other hotkey combos too.
Finally, the unit has a 2 port USB hub built into the rear of it. You can plug in things like USB printers, webcams, and other things then share those among all computers too. How well that works, I don't know. Probably depends on what software you are using.
Am very, very happy with the IOGear unit. Would recommend to friends, family, and co-workers.
Some notes:
1) Manual says max resolution is 1600x1200. Website says 1920x1200. Amazon says 1920x1200. Manual is outdated.
2) When installing the KVM, you should power up KVM then power up your computers. I did it backwards and couldn't get 1920x1200. Also, some computers might have to be rebooted when plugging in the KVM port. Depends on hardware, video card, and operating system.
3) When you start your computers after connecting to the KVM, they might show up with a lower than normal display resolution. Again, varies depend on hardware, video card, monitor, and operating system. Just adjust your settings.
I'm so happy to have a KVM with sound. This is awesome!
Customer Rating:
Summary: Works great
Comment: This product works great for me. Hooked up to it I have:
PowerMac G5 with ATI Radeon 9600
Core 2 Quad Ubuntu Hardy box with onboard Intel GMA X3500
Macbook Core 2 Duo with Intel GMA X3100
I first ordered a Startech Starview KVM, which showed no video from my laptop or Linux box. I returned it and got this instead. I should have gotten this from the start. Once I turned off the beeping and switched the keyboard mode to Mac, it works perfectly.
Customer Rating:
Summary: bad customer service
Comment: I have several of these switches in use and have been satisfied with their operation in the past, this latest one had me a bit unhappy. It arrived with two defective cables, fine electrically but the knobs that turn the studs to secure the cables to the KVM/monitor just spin on the stud.
I figured it would be no big deal and called IOGear tech support only to be told that they would not ship me two replacement cables and that I'd have to ship the entire switch back to Amazon and get it replaced that way.
I made a second call to IOGear customer service and requested confirmation of this policy both to be sure the tech was correct and that they and I had understood the situation correctly. After giving them my case number and explaining he situation again I was bumped up a couple levels to someone that could replace the cables and my problem was solved.
After looking at a couple of the other reviews I have another point that should be considered by folks ordering this KVM switch.
The switch is DVI-I and will switch DVI-D, DVI-A or VGA signals. The connectors on the KVM are DVI-D dual-link, I have not confirmed that the switch will do the dual-link mode and the IOGear website doesn't mention it.
However the cables shipped with the switch DVI-D single-link ones, do not have the analog connections needed to deliver the VGA signal to the switch.
That means you will need to get a VGA to DVI-I cable for any systems that only do VGA. You will also need a DVI-I to DVI-I cable to connect the switch to your monitor. So far all doable if a bit clunky, the killer is that you must have a DVI-I capable monitor port or it won't work. My NEC Multisync has a DVI-I port and when connected it works just fine. My LG monitor has a DVI-D port and it will not work for displaying VGA signals.
Wikipedia has a good page on DVI for non-experts that explains all of this with pictures.
http://en.wikipedia.org/wiki/Digital_Visual_Interface#Connector
Bottom line for me is that while not perfect it is good enough, I'll order another when needed and add it to the stack rather than switching brands and starting a second stack.
|
|
|
|
|
|
|
|
|
|
|
|
|
