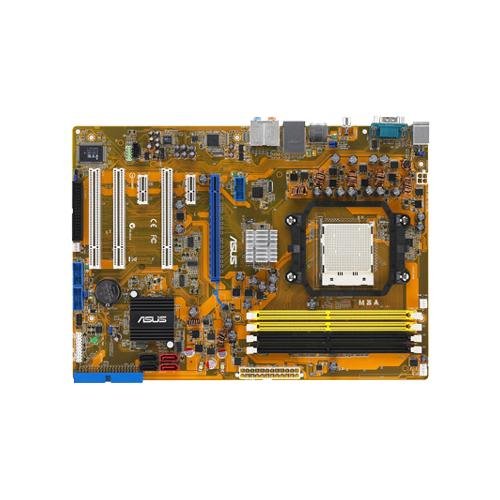

| Asus M3A AMD AM2 770 SB600 chipset DDR2 1066 PCIe x16 10 Motherboard |
|
 Larger image
|
List Price: $124.04
Our Price: $86.77
You Save: $ 37.27 (30%)
Availability: Usually ships in 24 hours
Manufacturer: Asus
|
Average Customer Rating: [ not yet rated ]
|
|
Binding: Electronics
Brand: Asus
EAN: 0610839156696
Feature: Box Contents - ASUS M3A Desktop Board, UltraDMA 133/100/66 cable, FDD cable, Serial ATA cables, Serial ATA power cables, Q-Shield, User's manual, 2 in 1 Q-connector
Is Autographed: 0
Is Memorabilia: 0
Label: Asus
Manufacturer: Asus
Model: M3A
Modem Description: None
Processor Count: 0
Publisher: Asus
Special Features: nv:Form Factor^ATX|Processor Interface^Socket AM2 / AM2+|Processors Supported^AMD Phenom|Additional Technologies^AMD Cool 'n' Quiet|Additional Technologies^HyperTransport 3.0 Technology|Front Side Bus^1000MHz (2000 MT/s)|Front Side Bus^800MHz (1600 MT/s)|Front Side Bus^2600MHz (5200 MT/s)|Northbridge^AMD 770|Southbridge^AMD SB600|Number of Slots^4|Number of Pins^240-Pin|Maximum Memory Supported^8GB - 64bit|Memory Supported^533MHz DDR2|Memory Supported^667MHz DDR2
Studio: Asus
System Memory Size: 0
|
|
|
Features
|
Box Contents - ASUS M3A Desktop Board, UltraDMA 133/100/66 cable, FDD cable, Serial ATA cables, Serial ATA power cables, Q-Shield, User's manual, 2 in 1 Q-connector
CPU - AMD Socket AM2+ Phenom FX/X4/X2 / Athlon X2 / Sempron; AMD Socket AM2 Athlon 64 X2/FX/64 / Sempron
Chipset - AMD 770 Chipset / SB600
System Bus - Up to 5200 MT/s; HyperTransport 3.0 interface for AM2+ CPU 2000 / 1600 MT/s for AM2 CPU
Memory - 4 x DIMM, max. 8GB, DDR2 1066 / 800 / 667 / 533, ECC and non-ECC, un-buffered memory, Dual channel memory architecture
|
|
|
|
|
|
|
|
|
Editorial Reviews:
|
This motherboard supports AMD Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. Latest System Bus Technology provides 2.6 times more bandwidth than HT1.0 that radically improves system efficiency for a smoother, faster computing environment. This motherboard is the 1st AMD platform with native DDR2 1066 support. It provides faster data access and more bandwidth for increased memory computing efficiency - enhancing performance for 3D graphics and other memory demanding applications. 4 x SATA 3.0 Gb/s ports, supports RAID 0, 1, and 0+1 1 x UltraDMA 133/100/66 1 x PCI-Express x16, 2 x PCI-Express x1, 3 x PCI (2.2) Atheros PCIe Gigabit LAN, featuring AI NET2 Realtek ALC883 8-channel High Definition Audio CODEC Back Panel I/O Ports - PS/2 Keyboard, PS/2 Mouse, Serial Port, S/PDIF Out (Coaxial), RJ45 (LAN) port, 4 x USB 2.0/1.1, 8-channel Audio I/O ATX form factor
|
|
|
|
|
|
|
|
|
|
|
|
|
